Flange – Plate Flange EN/DIN

Walmi  manufacture plate flange for welding PN10 according to EN 1092-1 latest edition, type 01, which is the new European standards replacing traditional DIN standards.

Below please find the details:

Plating flanges for welding PN10  EN 1092-1, type 01  replaces DIN 2576

SPECIFICATION

• Forged stainless steel material conforms to EN 10222-5 and ASTM A182/ASME SA182, including austenitic stainless steels: 1.4301, 1.4306, 1.4401, 1.4404, 1.4541, F304/304L,F316/316L,F321,F347,F310S; duplex stainless steels S31803/S32205/S2205; super-duplex stainless steels F32507 / UNS S32750/S2507.

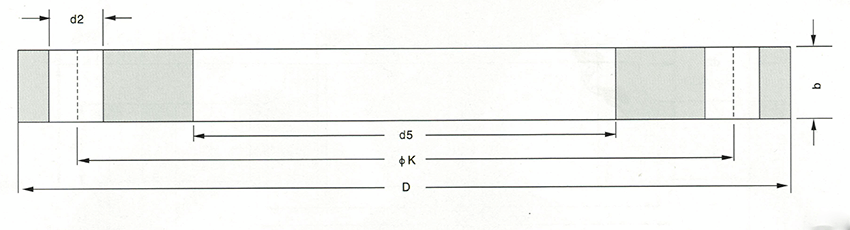

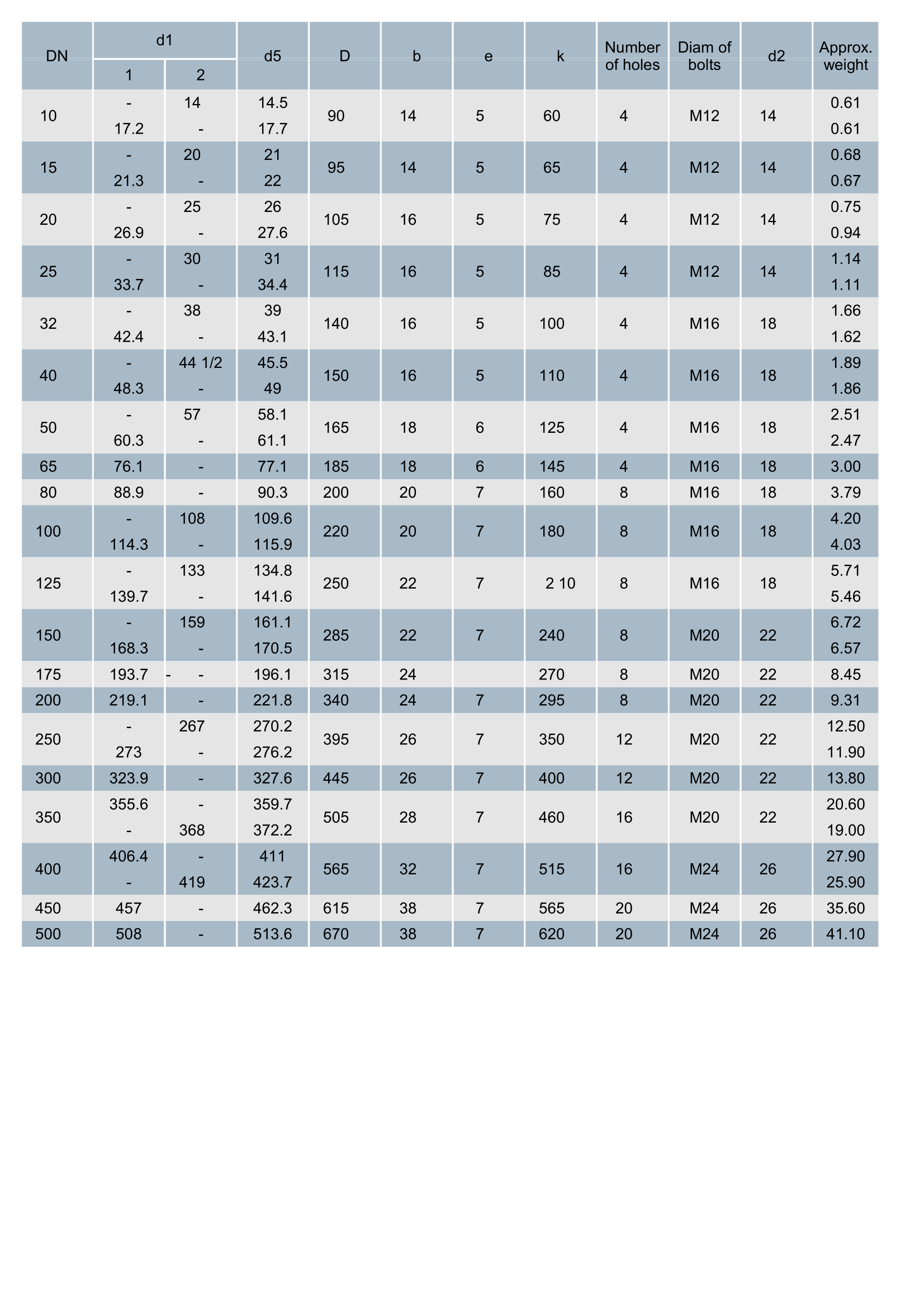

• Dimensions conform to EN 1092-1 type 01 and DIN 2576.
• Up to DN500 listed- Larger sizes available
• Customized or bespoke flanges of customer drawing are available.
• Certified to EN 10204/3.1.
